ELT to Nav Interface Boeing

When you’re facing an emergency situation, have peace of mind knowing that with the ELT to Nav-B Interface, search and rescue teams will have the knowledge of your position (within 100 meters). The ELT to Nav-B Interface is designed to be connected between the aircraft’s Flight Management Computer (FMC) or GPS receiver, and the B406-4 (Boeing) ELT. This device receives continuous position updates from the aircraft’s navigation system, and then translates it for use by the ELT. If you should need to activate your ELT, your aircraft’s latitude and longitude will be transmitted to a worldwide network of search and rescue satellites.

SKU: 453-6501 Category: Aviation Tags: boeing, ELT, elt 2 nav, elt to nav, elttonav, nav, nav interface

PRODUCT DESCRIPTION

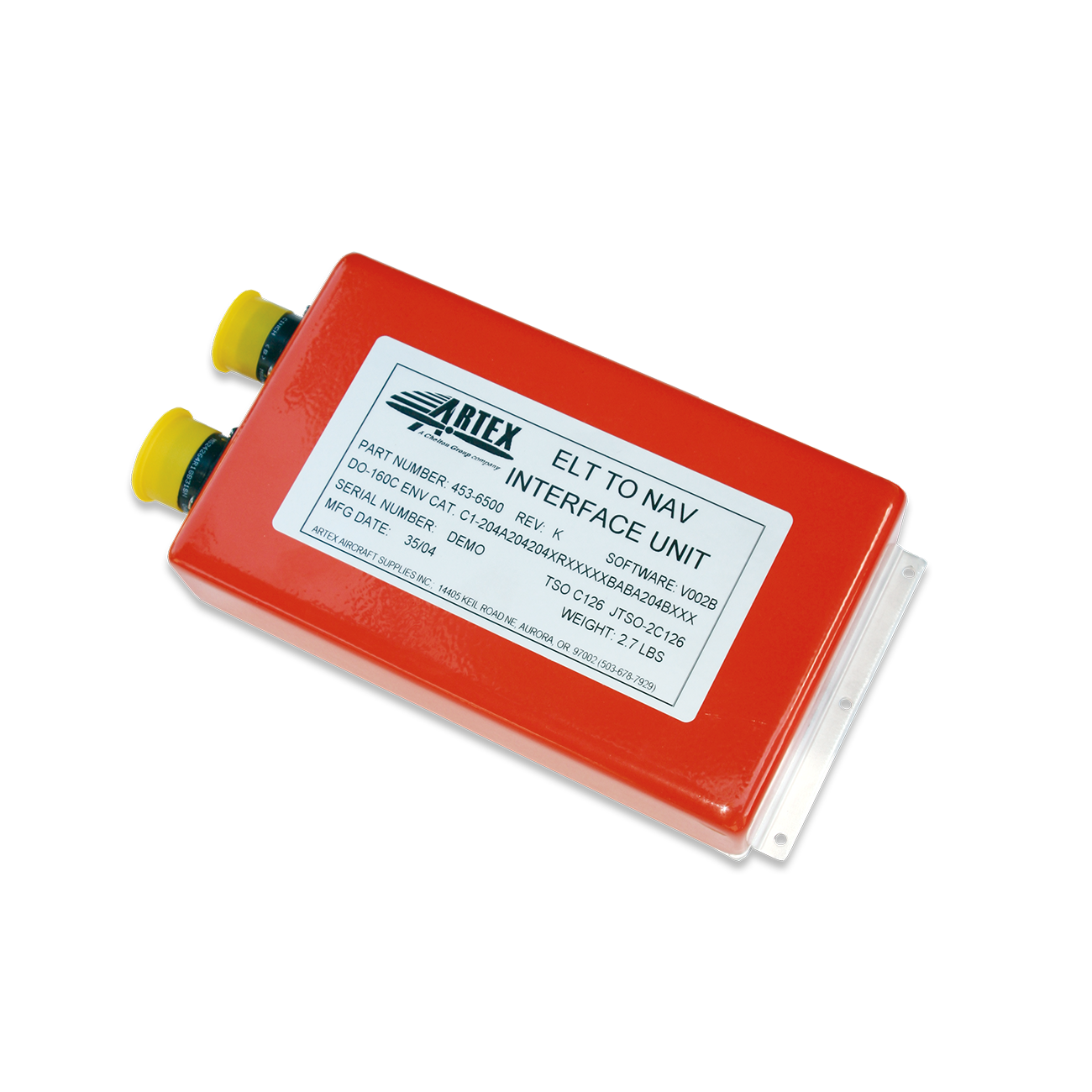

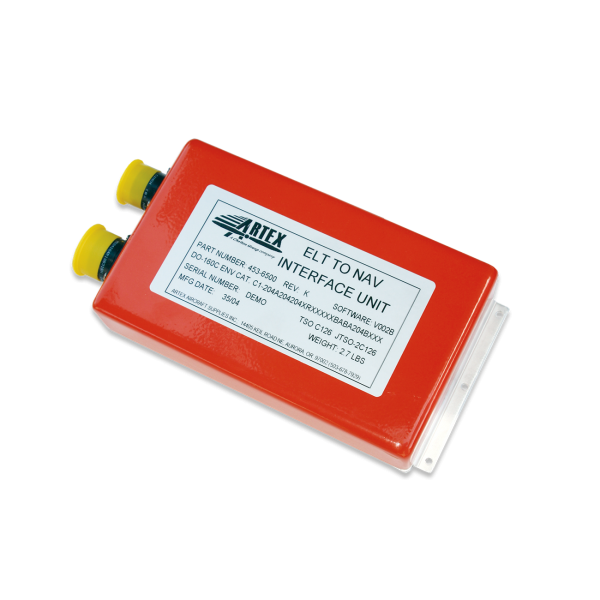

The Artex “ELT/NAV Interface -B” is designed to connect between the Boeing Flight Management Computer (FMC) and the Artex B406-4 ELT. Its function is to receive continuous position updates from the aircraft’s navigation system and translate it to the proper format for use by the ELT. Upon activation, the ELT transmits the latitude and longitude of the aircraft to the COSPAS/SARSAT satellite system. Knowledge of the position information allows Search & Rescue forces to launch an immediate mission to the last known position of the aircraft. The ELT/NAV Interface -B is also tested to meet the stringent requirements of Boeing for use in their aircraft as well as meeting the TSO C126 and JTSO-2C126 requirements as a B406-4 ELT system component. The ELT/NAV Interface -B is available as a complete kit (P/N 455-6501). The kit includes all required installation hardware (screws, washers, etc.), cable connectors with pins/sockets and a manual.

When properly registered, use of this technology can provide the following information to Search & Rescue teams: 1) Type of aircraft, 2) Owner(s), 3) Emergency Contact(s), 4) Country Code, 5) Aircraft ID or Serial Number of ELT, 6) ELT Manufacturer, 7) Latitude/Longitude Position.

Another advanced feature of the interface is an ability to custom program the ELT to the “24-Bit Address” (Mode S number) assigned to an aircraft. This is extremely useful for fleet operators who may find it necessary to change ELT’s in aircraft for maintenance purposes because it eliminates the need to reprogram the ELT every time it is moved.

Additional information

Weight	0.00 lbs

WARRANTY LENGTH: 30 MONTHS FROM DATE OF INSTALLATION OF THE GOODS ON BUYERS SOLUTION, 24 MONTHS FROM THE DATE OF DISPATCH OF GOODS BY THE SUPPLIER

Warranty coverage is effectively extended from previous warranties offered on Artex products. To qualify for warranty coverage, a customer must do one of two things.

1) Provide the original packing list from Artex with a shipping date on it. The warranty period expires 24 months from the date shipped on the packing list.

2) Provide proof of installation date (Logbook entry, signed copy of the FAA form 337 the ELT was installed under, or other documentation stating such).

If the customer is unable to provide either methods of documentation, the warranty will apply for 24 months from date of manufacture listed on the ELT product label, with a 6 month installation grace period – effectively 30 months.

For any inquiries regarding warranties, feel free to contact Artex products technical support at: artexsupport@acrartex.com or by phone at USA 954-981-3333.
