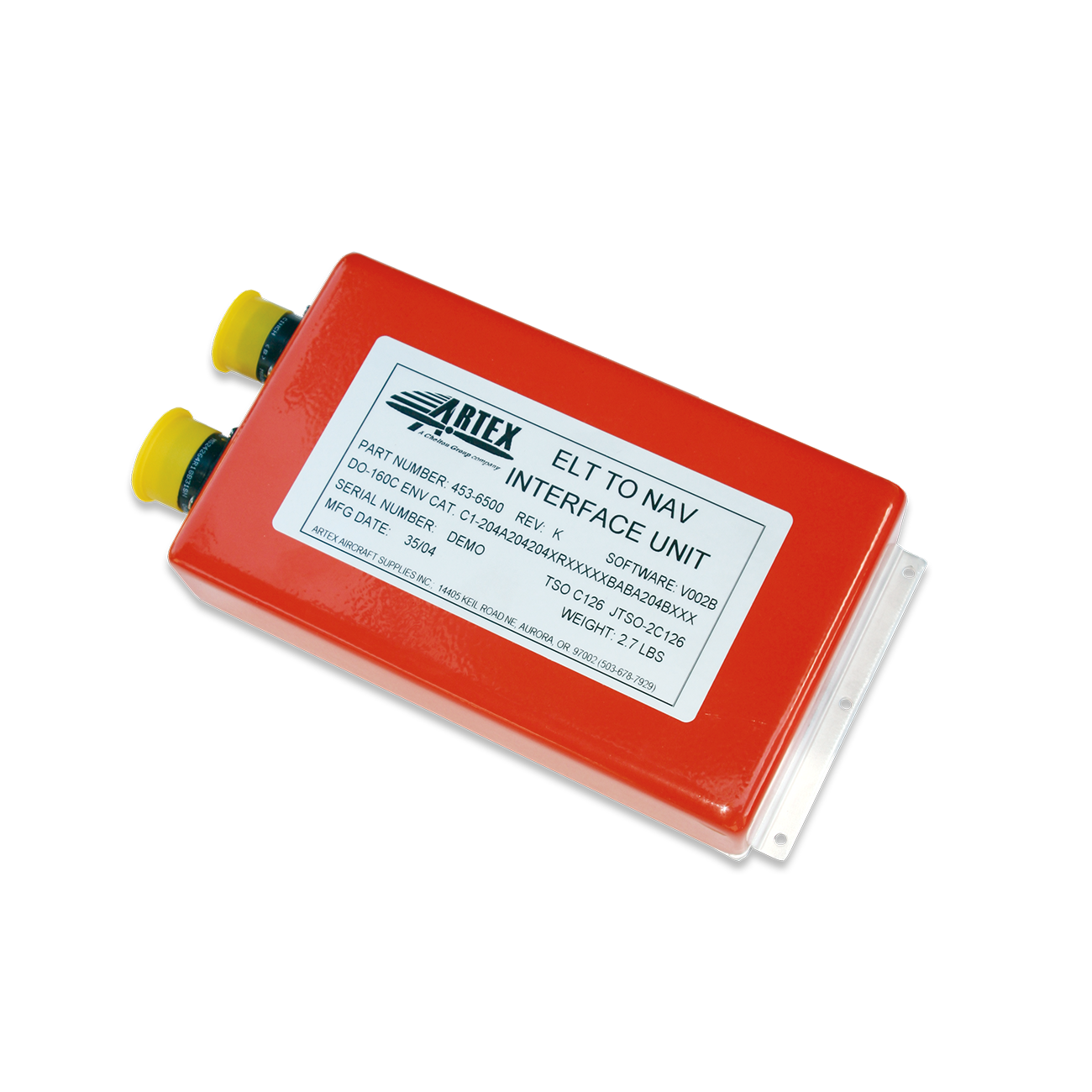

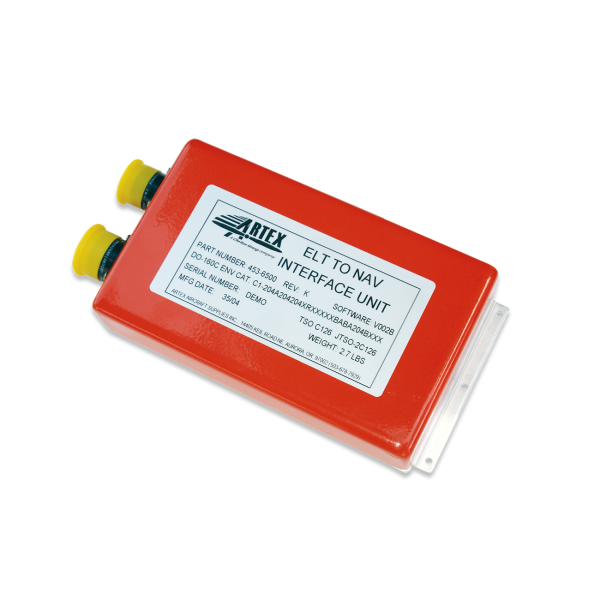

ELT to Nav Interface

When you’re facing an emergency situation, have peace of mind knowing that with the ELT to Nav Interface, search and rescue teams will have the knowledge of your position, within 100 meters. The ELT to Nav Interface is designed to be connected between the aircraft’s Flight Management Computer (FMC) or GPS receiver, and any of the 406 MHz series of ELTs. This allows your position to be transmitted along with your distress signal.

SKU: 453-6500 Category: Aviation Tags: airplane, ELT, elt to nav, ELT to Navigation Interface, flight, nav, navigation interface

PRODUCT DESCRIPTION

The knowledge of the position (to 1 meter) allows Search & Rescue forces to launch an immediate mission to the last known position of the aircraft. The ELT/NAV Interface meets TSO C126 and JTSO-2C126 requirements as a 406 MHz ELT system component. When properly registered, use of this technology can provide the following information to Search & Rescue teams: 1) Type of Aircraft, 2) Owner(s), 3) Emergency Contact(s), 4) Country Code, 5) Aircraft ID or Serial Number of ELT, 6) ELT Manufacturer and 7) Latitude/Longitude Position.

An advanced feature of the Nav Interface is the ability to custom program the ELT to the “24-bit Address” (Mode S Number) assigned to an aircraft. This is extremely useful for fleet operators who change-out ELTs because it eliminates the need to re-program an ELT before it is installed in to a different aircraft.

Allows the ELT to transmit latitude and longitude of the aircraft
Connects C406 and G406 series ELTs to the aircraft Flight Management Computer or GPS receiver
Programs ELT with the 24-bit address of the aircraft
Compatible with systems such as: Garmin, UNSD, ARNAV, IIMorrow, Bendix King

Additional information

Weight	0.00 lbs
Aircraft Type	Airliners, Large Jets, Passenger Jet, Rotocraft
Product	ELT Solutions

WARRANTY LENGTH: 30 MONTHS FROM DATE OF INSTALLATION OF THE GOODS ON BUYERS SOLUTION, 24 MONTHS FROM THE DATE OF DISPATCH OF GOODS BY THE SUPPLIER

Warranty coverage is effectively extended from previous warranties offered on Artex products. To qualify for warranty coverage, a customer must do one of two things.

1) Provide the original packing list from Artex with a shipping date on it. The warranty period expires 24 months from the date shipped on the packing list.

2) Provide proof of installation date (Logbook entry, signed copy of the FAA form 337 the ELT was installed under, or other documentation stating such).

If the customer is unable to provide either methods of documentation, the warranty will apply for 24 months from date of manufacture listed on the ELT product label, with a 6 month installation grace period – effectively 30 months.

For any inquiries regarding warranties, feel free to contact Artex products technical support at: artexsupport@acrartex.com or by phone at USA 954-981-3333.
