DGL-1

DGL-1

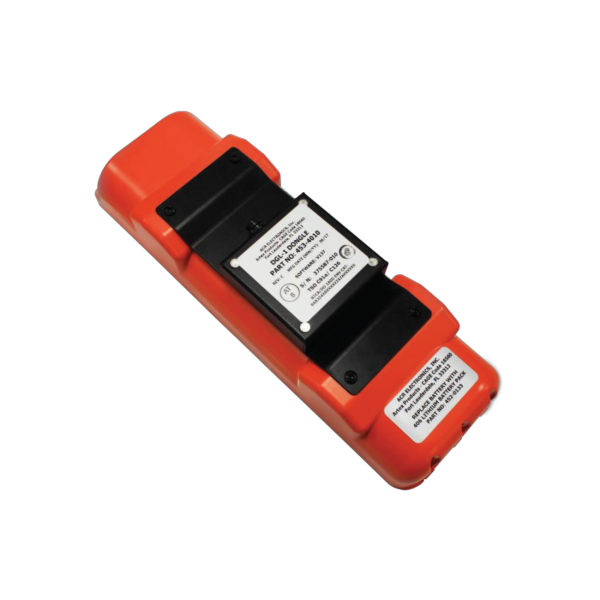

With the Artex DGL-1 programming dongle, fleet operators will be able to efficiently transfer ELTs from aircraft to aircraft. The DGL-1 is a perfect match for the operator who wants auto-programming capability, but does not desire the position data function of the Artex ELT/NAV Interface. The DGL-1 comes attached to a top cover, which, along with the dongle, remain with the aircraft. When an ELT is installed, the DGL-1 re-programs the ELT with the aircraft’s 24-bit address. Bottom line: this device greatly simplifies maintenance and reduces downtime.

Find a dealer

PRODUCT DESCRIPTION

Fleet operators will be able to transfer ELTs between aircraft in a very efficient and convenient manner. The DGL-1 comes attached to a top cover. The top cover and dongle remain with the aircraft. When an ELT is installed, the DGL-1 reprograms the ELT with the aircraft’s 24  bit address. DGL-1 is a perfect match for the operator who wants auto-programming capability but does not desire the position data function of the Artex ELT/NAV Interface.

• Designed specifically for fleet operators

• Existing C406-1/2, G406-4 and B406-4 installations are easily upgraded

• Greatly simplifies maintenance and reduces downtime

• Installation becomes part of the permanent AC harness

• Hardwire option for fleet aircraft identification

• Ensures correct ELT programming for spares

Additional information

Weight 0.00 lbs
Input Power +28 Vdc +/- 10Vdc
Ouput Power 5.6 Vdc +/- 0.3 Vdc (powers ELT for reprogramming only)
Temperature Operating: -20°C to +55°C, Storage: -55°C to +85°C
Weight DGL-1: 6 oz Max (170 g), Protective Top Cover: 6.7 oz (190 g), Total Weight: 11.5 oz (360 g)
Measurements 2.5” (64mm) W x : 6.1” (155mm) L
System Part Numbers Crimp Terminal: 151-6627, Mounting Screw (6-32 x 5/16): 201-6324-01, Protective Top Cover: 452-3052-03, Installation Kit: 455-4010, DGL-1 Dongle: 453-4010, Installation Kit: 455-4010, Wire Harness: 611-4010, Heat Shrink Splice: 610-1744-01
Compatible with the following Artex ELT Models 110-406 NAV, 110-406HM NAV, 110-406ED NAV, B406-2, B406-4, C406-1, C406-1HM, C406-2, C406-2HM, G406-1, G406-2, G406-4

WARRANTY LENGTH: 30 MONTHS FROM DATE OF INSTALLATION OF THE GOODS ON BUYERS SOLUTION, 24 MONTHS FROM THE DATE OF DISPATCH OF GOODS BY THE SUPPLIER

Warranty coverage is effectively extended from previous warranties offered on Artex products. To qualify for warranty coverage, a customer must do one of two things.

1) Provide the original packing list from Artex with a shipping date on it. The warranty period expires 24 months from the date shipped on the packing list.

2) Provide proof of installation date (Logbook entry, signed copy of the FAA form 337 the ELT was installed under, or other documentation stating such).

If the customer is unable to provide either methods of documentation, the warranty will apply for 24 months from date of manufacture listed on the ELT product label, with a 6 month installation grace period – effectively 30 months.

For any inquiries regarding warranties, feel free to contact Artex products technical support at: artexsupport@acrartex.com or by phone at USA 954-981-3333.
