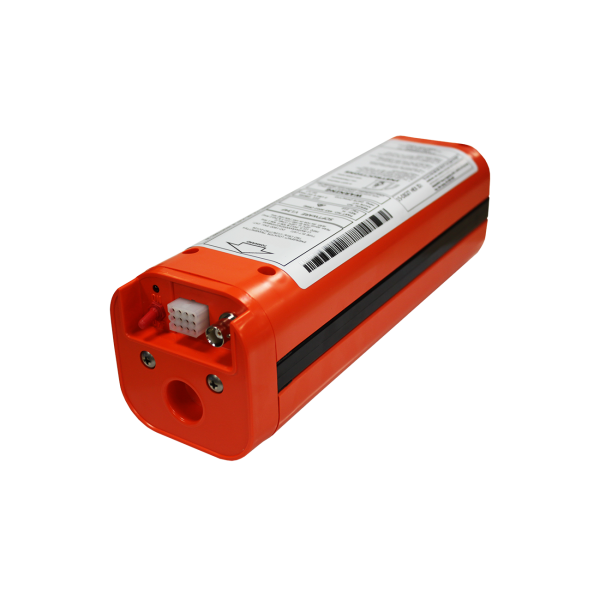

C406-2

The Artex C406-2 transmits on all 3 emergency frequencies (121.5/243.0 and 406 MHz.) The ELT automatically activates during a crash and transmits the standard swept tone on 121.5 and 243.0 MHz. It also transmits a 406 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time.

SKU: 453-5000 Category: Aviation Tags: 453-5000, Aviation, c406, commerical, ELT

PRODUCT DESCRIPTION

The C406-2 has been tested to meet the rigorous requirements of TSO C126 including 500 G shock, 1000 pound crush as well as flame and vibration tests. The C406-2 is available for use with Artex’s low cost whip antennas, rod antenna, or a blade antenna and may be interfaced with the optional Artex ELT/NAV Interface enabling latitude and longitude data to be transmitted as part of the 406 MHz message. The C406-2 uses two coax cables to accommodate all three frequencies. The C406-2 ELT is available for fixed wing with a single-directional G-Switch.

ARTEX ELTs are the choice of commercial aircraft including Boeing, Bombardier and Embraer and business Jets including Cessna, Beechcraft, Quest, Gulfstream and Embraer.

ELT Pack List

	Antenna	Remote Switch & Accessories	Manuals/Approvals/Downloads
ELT C406-2 455-5000			Pack List
ELT C406-2 455-5010	110-320 (White) & 110-320-04 (Black)	455-6196	Pack List
ELT C406-2 455-5011	110-337 & 110-337-01 (Protective Edge)	455-6196	Pack List
ELT C406-2 455-5022			Pack List
ELT C406-2 455-5028	110-337 & 110-337-01 (Protective Edge)		Pack List
ELT C406-2 455-5030	110-333 (White) & 110-333-04 (Black)		Pack List
ELT C406-2 455-5029	110-320 (White) & 110-320-04 (Black)		Pack List
ELT C406-2 455-5031	110-323	455-6196	Pack List
ELT C406-2 455-5032	110-324	455-6196	Pack List
ELT C406-2 455-5035	110-337 & 110-337-01 (Protective Edge)	455-9700 (Black) & 455-9701 (gray)	Pack List
ELT C406-2 455-5036	110-337 & 110-337-01 (Protective Edge)	455-9700 (Black) & 455-9701 (gray)	Pack List

Weight	0.00 lbs
Aircraft Type	Airliners, Large Jets, Light Jets, Mid-size Jets, Turboprop
Product	ELT Solutions

Model	C406-2
Antenna Options Available	Rod: 110-320, Blade: 110-337
Operating Frequencies	406 MHz, 121.5 & 243. MHz +/- 0.005% (A3X)
Ouput Power	406 MHz: 5 W +/- 2 dB (520 ms / 50 sec) for 24 hours @ -20°C, 121.5/243.0 MHz: 100 mW min (+20 dBm) for 50 hours @ -20°C
Output Connector	BNC Female (121.5/243.0 MHz), TPS Female (406 MHz)
Activation	Automatic by 4.5 feet per second (2.3 G) Primary G-Switch or Manual Activation
Battery	5 year Lithium (LiMnO2, solid cathode), Replacement Battery Part No. 452-0133
Temperature Certified to:	Operating: -20°C to +55°C, Storage: -55°C to +85°C
Self Test	G-Switch Enabled, 406 MHz Power, Antenna/Coax Connection, Position Data Present, Low Battery
Remote Switch	ON/ARM
Weights (with tray)	ELT Transmitter: 3.16 lbs (1.43 kg), Mounting Tray: 1.08 lbs (448 g), Total Weight: 4.24 lbs (1.9 kg)
Measurements	ELT Transmitter with mounting hardware installed 11.74” (298 mm)L x 3.9: (99 mm)H x 3.82” (97 mm)W

C406-2

C406-2

PRODUCT DESCRIPTION

Additional information

WARRANTY LENGTH: 30 MONTHS FROM DATE OF INSTALLATION OF THE GOODS ON BUYER’S SOLUTION. 24 MONTHS FROM THE DATE OF DISPATCH OF GOODS BY THE SUPPLIER
