ARTEX PLB

Home

/

Aviation

/

ARTEX PLB

ARTEX PLB

$359.95

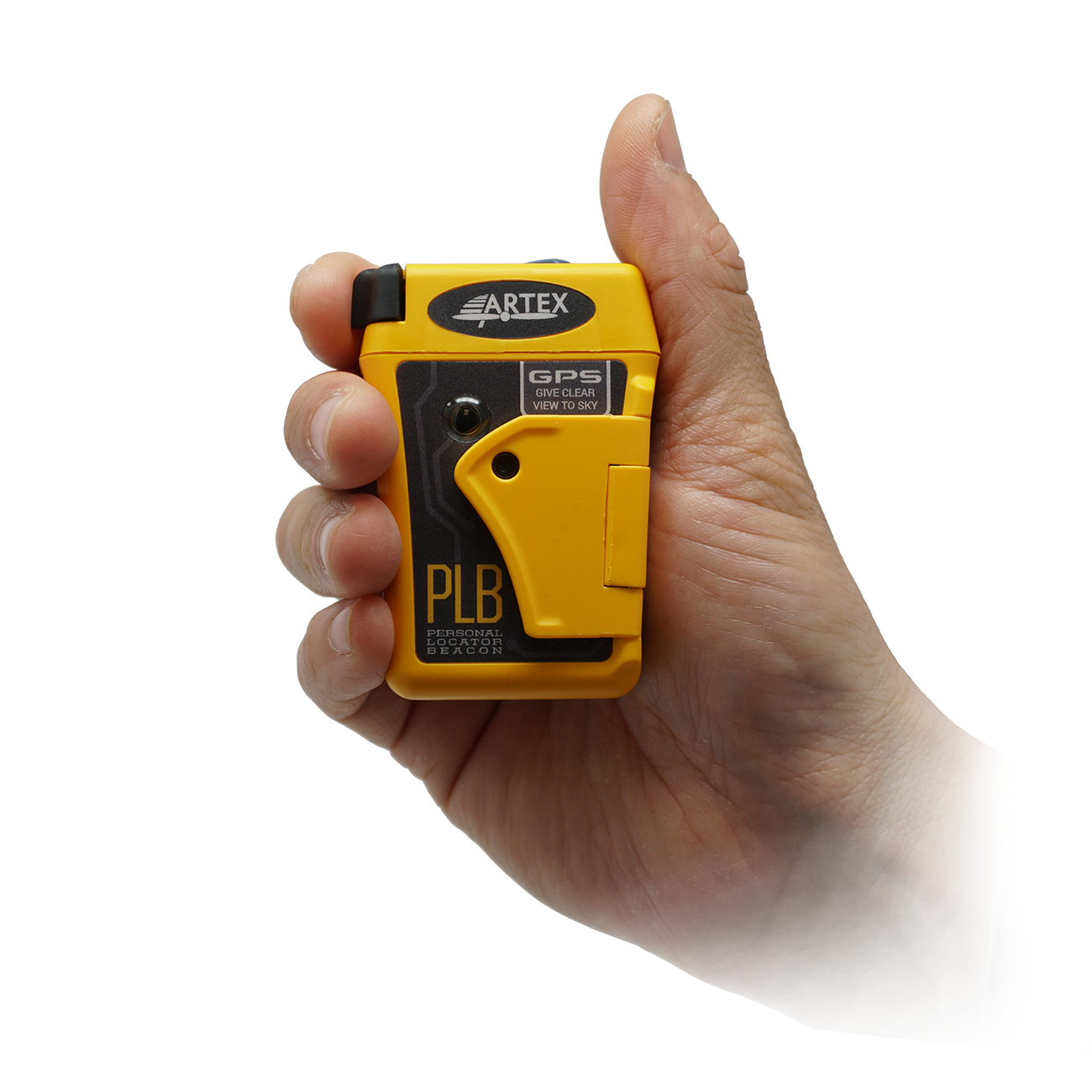

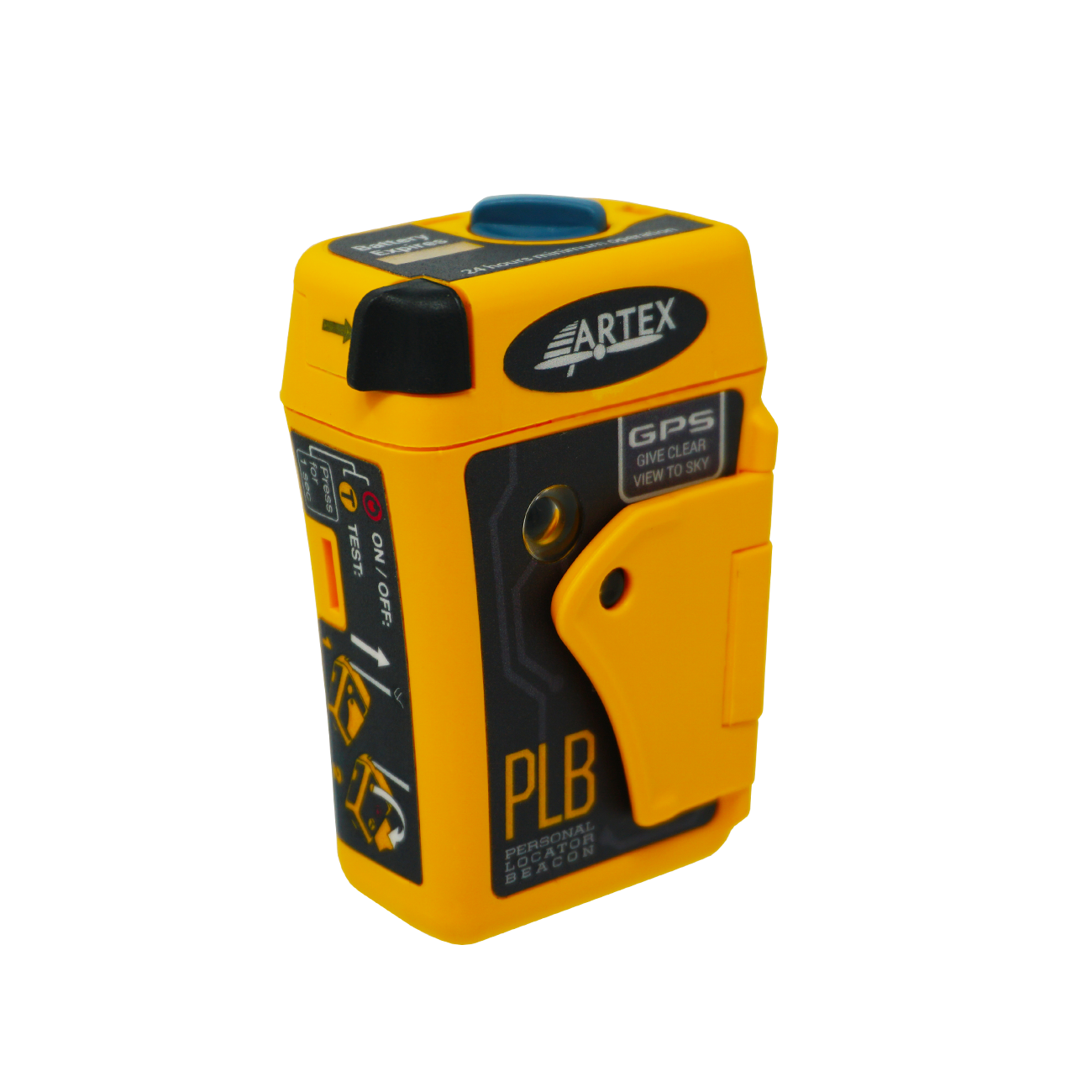

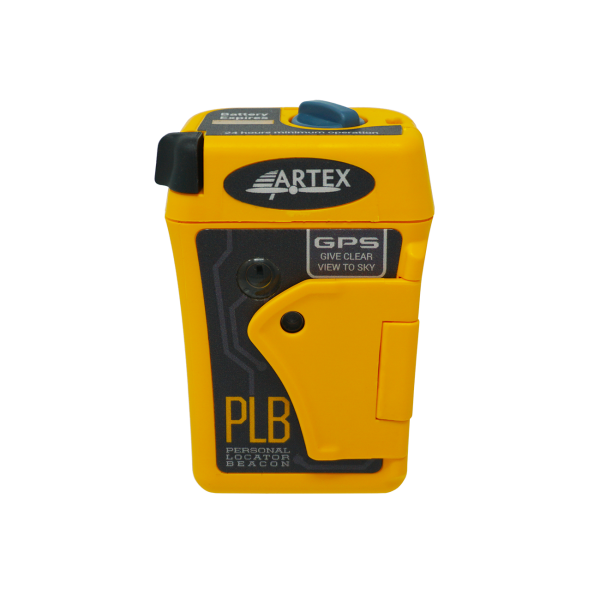

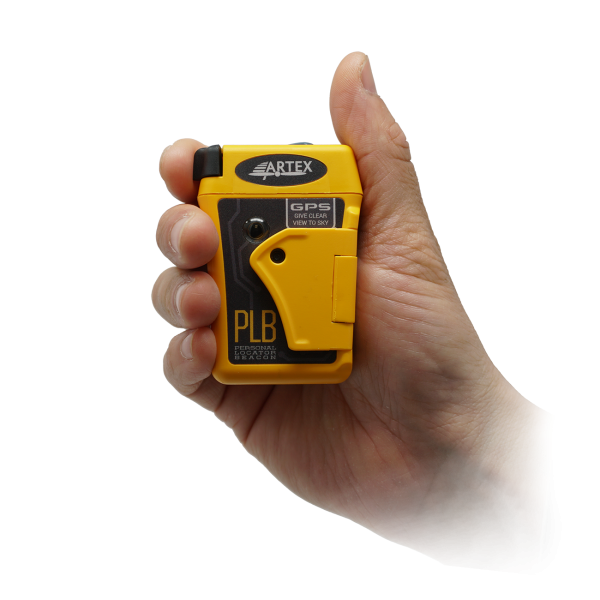

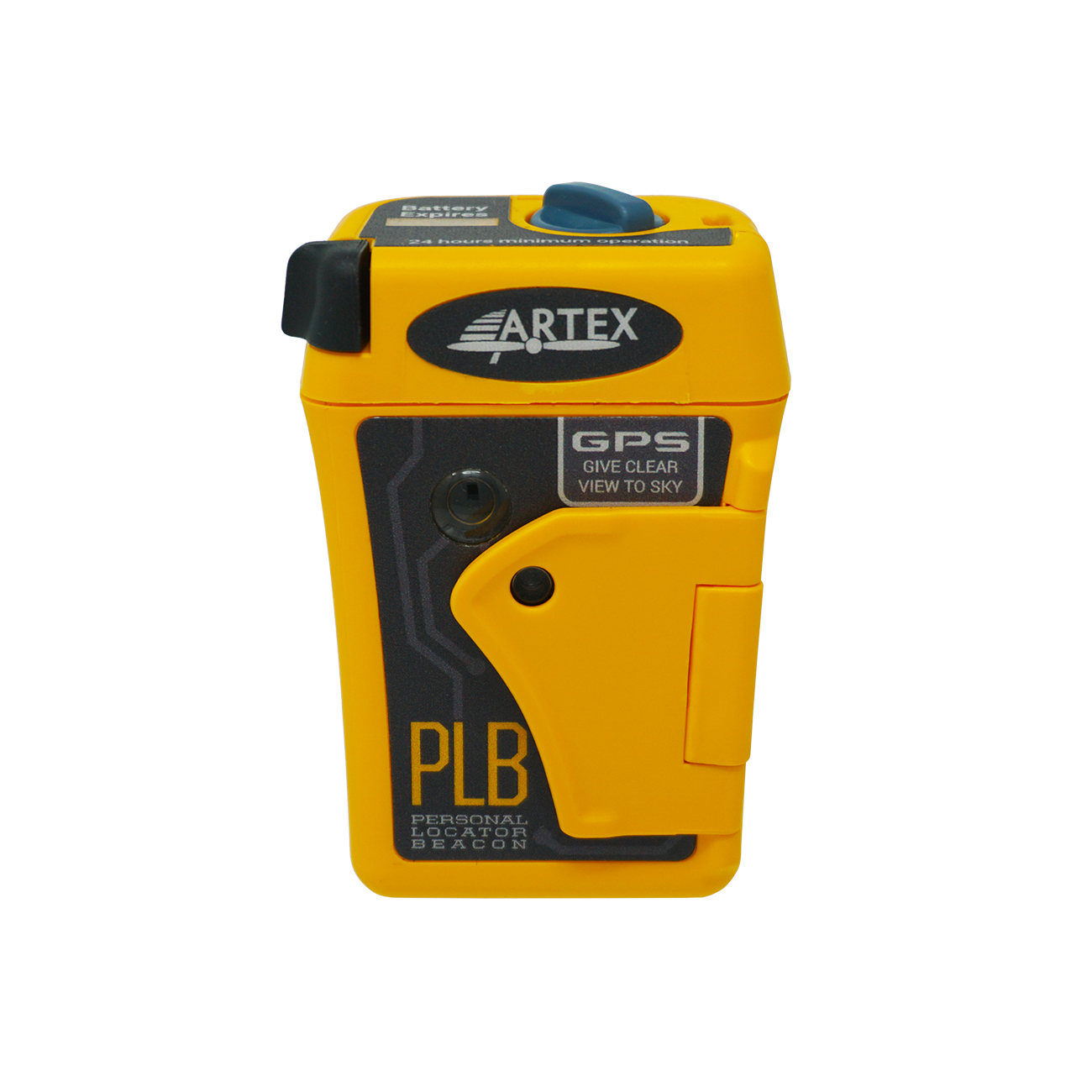

The ultra-compact ARTEX PLB can easily fit into your pocket or can be attached to a belt, taking up minimal space and ensuring it is readily accessible.





Out of stock

PRODUCT DESCRIPTION

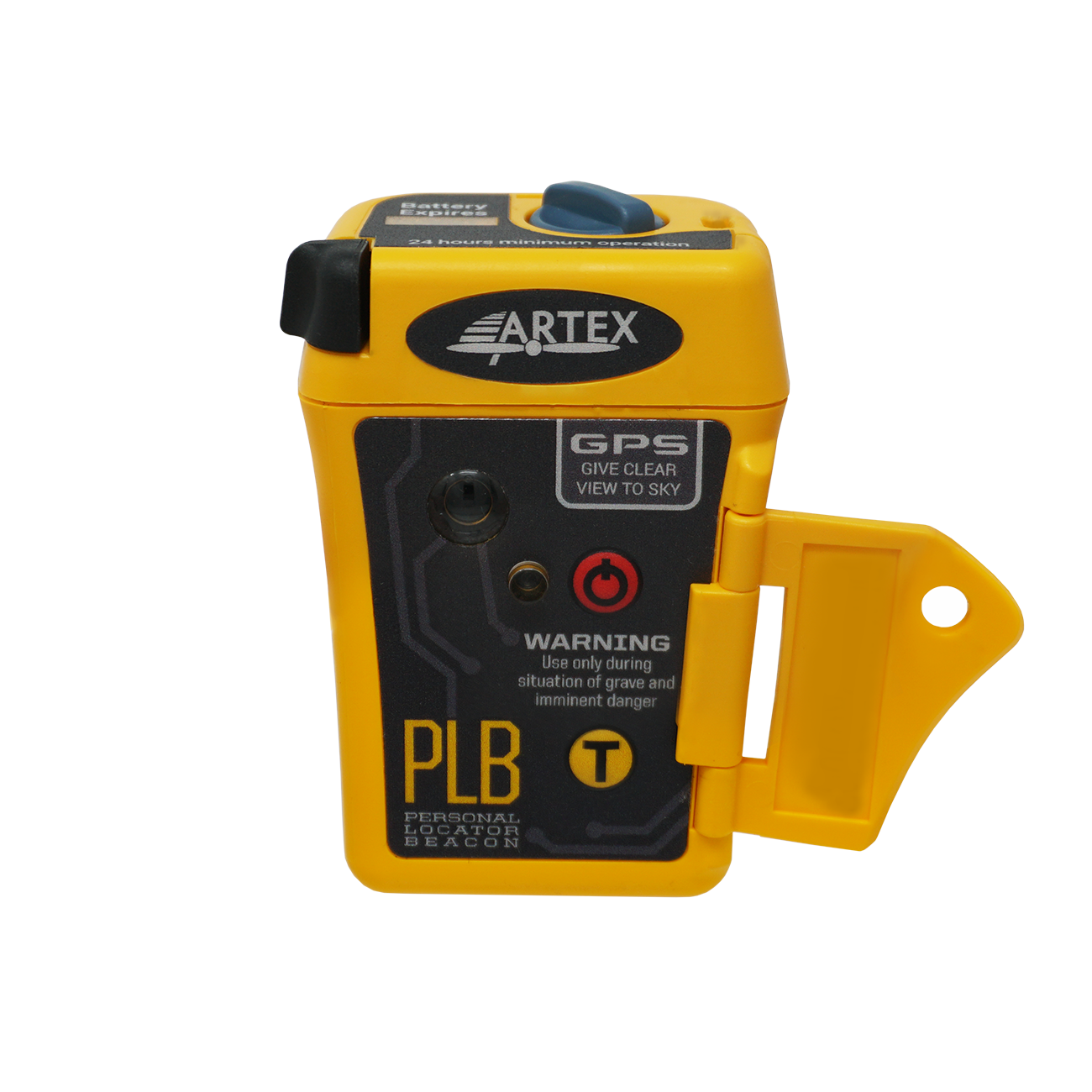

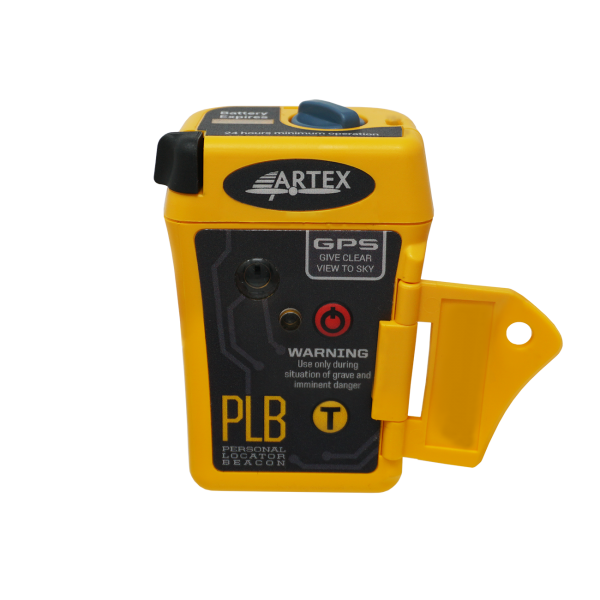

The ARTEX PLB can be operated with a single hand in even the most challenging situations. A simple spring loaded flap covers the activation button preventing inadvertent use and the integrated ultra-bright strobe light ensures maximum visibility. Antenna deployment is achieved simply with only a gentle pull necessary to facilitate release.



Whatever your adventure, whether in the air, at sea, or on land, the ARTEX PLB provides the reassurance that emergency services can be alerted, and rescue can be facilitated, by the mere press of a button.



The ARTEX PLB works with the only officially recognized worldwide dedicated search and rescue satellite network (operated by Cospas Sarsat). As this satellite network is funded by governments, there are NO CHARGES to use this service in the event of an emergency.



When activated, the ARTEX PLB transmits your position and your ID to a Rescue Coordination Center via satellite link. Rescue services nearest to you are promptly notified of your emergency and initiate the Search & Rescue process.



The ARTEX PLB features a unique mounting clip and a flotation pouch: The PLB can be firmly attached to the pouch with the provided lanyard to enable it to float.



Tags: ARTEX, ARTEX PLB, Personal Locator Beacon, PLB, Aviation PLB, Aviation Personal Locator Beacon, Outdoor Preparation, Wild and Safe, Protection Gear, Safety Gear, Hunting Gear.



Additional information

Weight 1 lbs
Dimensions 9 × 9 × 5 in
Aircraft Type

, ,

Product

,

Product Number

8110



Model

ARTEX PLB



Size

2.1 (L) x 1.3 (W) x 3.0 (H) inches (51 x 32.5 x 77 mm)



Weight

4.09 oz (116 g)

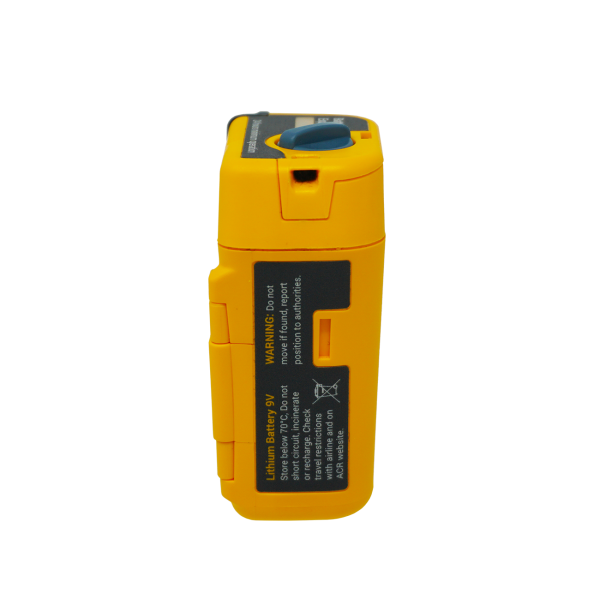

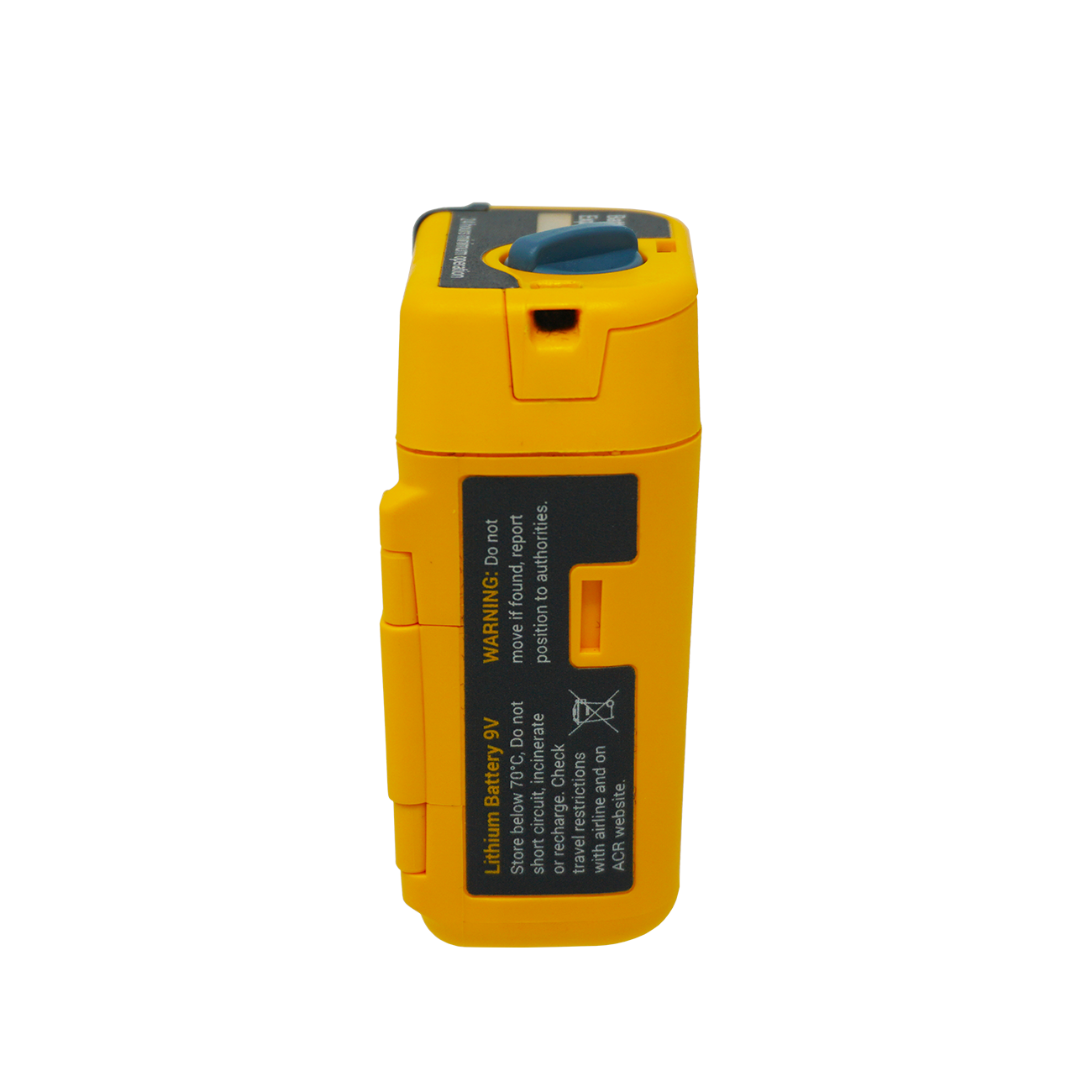

Battery, Class

Class 2 (non-hazmat) lithium batteries



Battery, Replacement Interval

Replacement due seven (7) years from date of manufacture or after emergency use



Battery, Operational Life

Exceeds required 24 Hours @ -4°F (-20°C)



Storage Temperature

-30°C to 70°C (-22°F to 158°F)



Operating Temperature

-20°C to 55°C (-4°F to 131°F)



Color

Orange



Activation

Manual



Operation

2 steps: deploy antenna, press ON button, giving clear view of sky



Waterproof

15 m at 20°C



Approvals

FCC, RED



Limited Warranty

5 years



Accessories

Mounting Clip, Mounting Band, Lanyard

WARRANTY LENGTH: 5 YEARS

This product is warranted against factory defect in material and workmanship for a period of 5 (five) years from date of purchase or receipt as a gift. During the warranty period ACR Electronics, Inc. will repair or at its option, replace at no cost to you for labor, materials or return transportation.
For further assistance, please contact our Technical Service Department at :



ACR Electronics, Inc.

5757 Ravenswood Road

Fort Lauderdale, FL 33312-6645

Email: service@acrelectronics.com

Telephone: +1 (954) 9881-3333

Fax: +1 (954)983-5087
This warranty does not apply if the product has been damaged by accident or misuse, or as a result of service or modification by other than the manufacturer.  The COMPANY MAKES NO REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY OTHER MATTER WITH RESPECT TO THIS PRODUCT, except as otherwise expressly stated in the previous paragraph. The Company shall not be liable for consequential or special damages. In order to place the warranty in effect, choose a form above and complete it entirely. Or you may fill out the registration card accompanying your product (if applicable) which must be returned to ACR Electronics, Inc. within ten days of purchase.

Q: How do I register my beacon?

406 MHz Beacons must be registered with the National Authority of the country you live in.

Step 1. Visit our Registration database to find the appropriate National Authority

Step 2. Register with your countries National Authority via Mail, Fax or for the fastest service register online.



Registration in the United States

The national authority that accepts beacon registrations in the United States is the National Oceanic and Atmospheric Administration (NOAA). Here are three easy ways to register:
1.) The fastest and easiest way to register is online at www.beaconregistration.noaa.gov. Recommended method. Verify and validate information before submitting.
2.) Mail the registration form with the pre-addressed, postage paid envelope to:

NOAA

NSOF, E/SPO53

1315 East West Hwy

Silver Spring, MD 20910

Please print legibly

3.) Faxing a registration is also acceptable. Fax the registration form to the Fax number on the bottom of the registration form. To reduce the possibility of erroneous entry please verify legibility of information and validate information on form to UIN on beacon before faxing. Please print legibly and in BLACK ink.
All registration forms will be entered in the 406 MHz beacon registration database within 48 hours of receipt. The information you provide on the registration form is used for rescue purposes only.
A confirmation letter, a copy of the actual registration and a proof-of-registration decal will be mailed to you within two weeks. When you receive these documents, please check the information carefully to ensure that the information provided on the label agrees with the information on the beacon and then affix the decal to your beacon in the area marked BEACON DECAL HERE. If you do not receive confirmation from NOAA in the expected timeframe, or if the information on the label is incorrect call toll free 1-888-212-7283 for assistance.



Registration outside of the United States

In countries other than the United States, 406 MHz beacons are registered with that country\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\’s national authority at the time of purchase. The sales agent should have assisted you in filling out the forms and sending them to the country\\\\\\\\\\\\\\\’s national authority. Alternatively, visit our Registration database or many countries allow online registration in the International 406MHz Beacon Registration Database (IBRD) at www.406registration.com. To verify that the unit is properly programmed for your country, view the UIN label on the back of the unit. In the event that the beacon is not programmed for your country, the sales agent (if properly equipped) can reprogram the unit for the correct country.



Q: What are my obligations with regard to registering and re-registering my beacon?

A beacon should be registered at the time of purchase or installation. The registration of a beacon is valid for 2 (two) years. The owner should re-register the beacon every two years.  If change of ownership occurs, the original owner must notify the authorities and de-register the beacon before the new owner can register.



Q: Why is it so important for me to register my beacon?

Registering the EPIRB, ELT or Personal Locator Beacon is required by law in the United States and in most countries. Registering is very important because should your beacon ever be activated, it is how Search and Rescue Teams will know who you are, and contacts provided may be able to supply information about your specific travel plans. In the absence of this information, it may take longer for a search-and-rescue operation to begin.



Q: I tried to register my beacon but the authorities tell me that it needs a different ID number programmed in. Do I need to send this back to you?

This can be done by any Certified Battery/Service Center.  Please have your registration form and beacon available when contacting a Certified Battery Replacement Center for assistance.



Q: Where do I take/send my unit for battery service?

Visit our Battery / Service Locator. Contact the battery/service station for instructions on how to send the beacon to them. Please contact the BRC for the cost for this service.

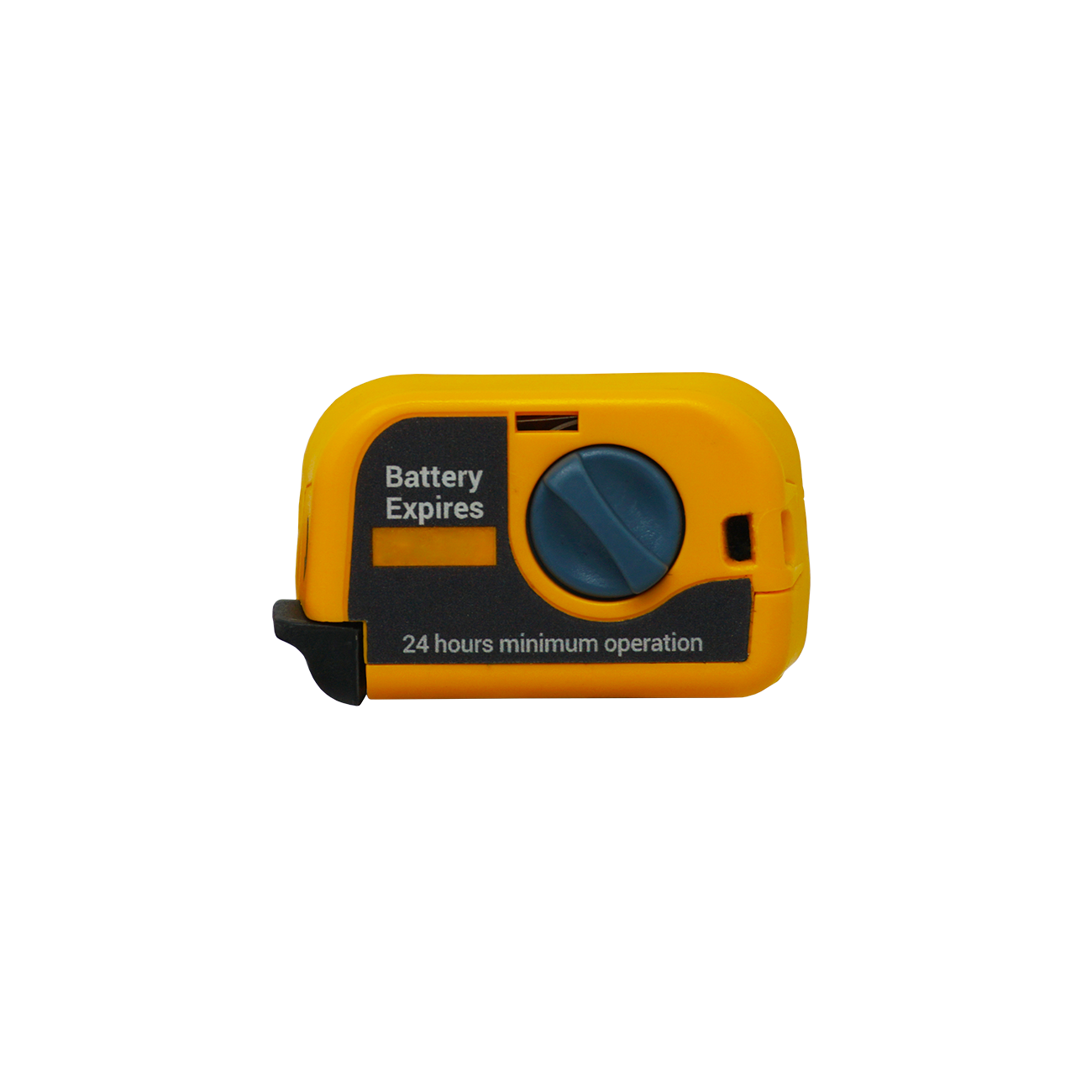

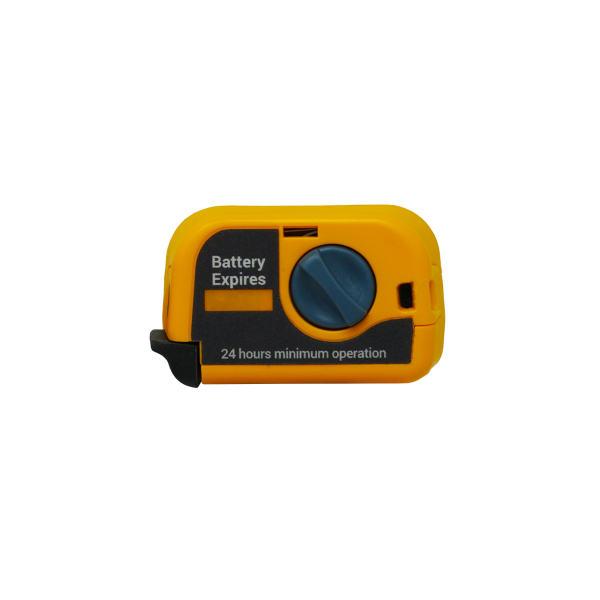

Q: How do I know when the battery is due for replacement?

There is a battery expiration date label on every beacon.

Example of a Battery Replacement Date is 07/2010



Q: Can I buy a battery from you and replace it myself?

No. The battery cannot be purchased. This is a life saving device and you need to have the tools, hardware and software to perform a battery replacement. Full functional testing is done on the unit, after the battery is replaced, to make sure that the unit will last another 5 years in the field.  The battery of any EPIRB, ELT or Personal Locator Beacon needs to be replaced by an ACR/Artex Certified Battery Replacement Center (BRC), where trained technicians will perform this service.



Q: What will happen if I do not replace the battery every five years?

The chances of surviving a life threatening situation is greatly diminished if proper care and maintenance is not given to a beacon.



Q: Do I have to replace the battery if the beacon goes off by mistake and why?

Yes, as this is a lifesaving device it should be diligently maintained to perform as specified. For this unit to transmit for the full 24 hours it will need a new battery as any inadvertent activation will deplete the existing battery.



Q: Where do I dispose of a beacon battery?

For information about disposal of lithium batteries or products with lithium batteries in them, please contact your local waste management company.



Q: Is there any special instruction for shipping a battery or a unit with the battery in it?

There may be, depending on the beacon that you have. Due to transportation regulations changes, some ACR & Artex products that contain lithium batteries may need to be shipped as Hazmat. Please visit the product page for your product and review the download tab for the Material Safety Data Sheets (MSDS).



Q: Is there a local service center where I can get my beacon serviced?

Find a battery/service center here.



Q: How do I know the beacon is working?

Perform a monthly self-test. If the test passes, the beacon is working. If self- test does not pass, take/send the beacon in for service.  If you want to know that your beacon signal is reaching the satellite system and your signal is being received back down to earth please check out our advanced testing service called 406Link.com.



Q: How often should I carry out a Self Test?

The beacon owners manual usually recommends the frequency of these tests; typical advice is once a month and/or before extended trips.

Advanced Satellite Testing can be performed using our new service called 406Link.com



Q: What is a GPS Self Test?

Newer GPS (sometimes referred to as GNSS) equipped beacons may also include an optional GPS Satellite Acquisition Self Test (not all GPS beacons have this ability), which tests the operation of the GPS Receiver and its ability to encode your location into the transmitted distress message. It is not uncommon for this test to only be permitted to be performed once or twice over the life of the battery (e.g. every couple of years), as this type of test can significantly reduce the battery life of the beacon.  For beacons installed in commercial craft there are often regulatory requirements that define how often these tests should be performed.

GPS Testing with 406Link.com

Current ACR GlobalFix EPIRBs and older Model Personal Locator Beacons (AeroFix, TerraFix, AquaFix, MicroFix, ResQFix) have the ability to perform a GPS Test, however this GPS Test is not transmitted to the satellites, so if you have an account with 406Link.com your GPS Coordinates will not appear.

New ACR Personal Locator Beacons including the AquaLink and SARLink models can perform GPS Self Tests that will actually transmit to your GPS Coordinates to the satellites and with 406Link.com pin point your location onto a map.   These tests are limited to 12 Tests for the PLB-350B Model over the 5 year life of the battery and 60 Tests for the PLB-350C.



Q: What should I do if I get a Self Test failure?

If you get a Self Test failure, first check the instructions in the user manual supplied with your Beacon, make sure you carried out the test correctly and that you have followed any instructions provided.  If you are sure your Beacon failed the self test then you should contact the beacon manufacturer or one of their appointed service agents for further advice and instructions.



Q: Are there any Beacons that I can\\\\\\\\\\\\\\\’t test Through the Satellites?

Yes, in particular some older models of Beacons do not transmit a 406 MHz burst, so they cannot be tested in this way. In addition some current other manufacturers models of Beacon incorporate features (e.g. a rolled up one time only use antenna) that reduce their radiated power output during a Self Test and therefore these beacons do  not transmit a signal that is strong enough to reach the satellites.

Learn more at 406Link.com



Q: How does the GPS Self Test feature work?

A lot of beacons on the market have the capability to do a GPS test, in which the beacon turns the GPS engine on, acquires GPS data and flashes a light to signify the test is completed.

New Personal Locator beacon models from ACR have the ability to transmit this GPS location in a self test burst and pin point your exact location on a map using 406Link.comto ensure you that (1) your beacon is working perfectly and can reach the satellite system and (2) that your GPS is working perfectly.



Q: How many Self Tests and GPS Test can I perform?

406 MHz beacons (Manufactured in 2010 or later) can perform 420 self tests over the 5 year life of the battery. The PLB-350C (Models: AquaLink View and SARLink View) can also perform 60 GPS Self Tests over the 5 year life of the battery. The PLB-350B (Models: AquaLink and SARLink) is limited to 12 GPS Self Tests over the 5 year life of the battery.

ACR beacons (Manufactured prior to 2010) can perform 340 self tests over the 5 year life of the battery. If you have a beacon from a manufacturer other than ACR, please refer to your beacon owner\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\’s manual or contact your beacon manufacturer for the number of budgeted self tests your beacon can perform over the 5 year life of the battery.

Learn more about advanced satellite testing through the satellite system at 406Link.com



Q: What do PLBs do?

Personal Locator Beacons (PLBs) are distress radio beacons which transmit location information about individuals directly to Search and Rescue forces letting them know that the owner is in grave and imminent danger.



Q: Where can I purchase a beacon?

Visit our Where To Buy dealer locator



Q: Can 406 MHz beacons be used anywhere in the world?

Yes, 406 MHz beacons can be used anywhere in the world, including the Poles.



Q: Is there a subscription fee for beacon registration or rescue service?

Beacon registration is free, should you ever have to activate your beacon, rescue is free in most parts of the world.



Q: When do you use a Beacon?

Most Search-and-Rescue (SAR) organizations instruct that beacons are satellite signaling devices of last resort, for use when all other means of self-rescue have been exhausted, where the situation is grave with imminent danger and the loss of life, limb, eyesight or valuable property will occur without assistance.



Q: Do I need a radio license?

For the latest information, in the United States you may contact the Federal Communication Commission at toll-free 1-888-CALLFCC or visit the website of the FCC.  Outside of the United States, contact your local authority for the requirements.



Q: What is a UIN and where do I find it on the beacon so I can register my beacon?

A UIN is a Unique Identifier Number that is programmed into each beacon at the factory. The UIN number consists of 15 digit series of letters and numbers that make up the unique identity of the beacon. The UIN is on a white label on the exterior of the beacon. The UIN is also referred to as the Hex ID.



Q: Is it true that certain emergency beacons no longer work?

The 121.5MHz and 243 MHz beacons are no longer satellite detectable. The beacons may still function but the emergency satellite system will no longer detect the emergency signals from these frequencies. Please read the explanation of the phase out of the 121.5/243 MHz frequency from Cospas-Sarsat at http://www.sarsat.noaa.gov/phaseout.html.

If you have a 121.5 MHz or 243 MHz beacon, you should upgrade to a new 406 MHz beacon.



Q: Can I take my beacon with me on an aircraft?

You may wish to check with the airline about any restrictions or documentation that you may need to carry with the unit.   We suggest that you print a copy of the MSDS and bring it with you. We also recommend that you carry the Product Support Manual to explain what the unit is (MSDS sheets and Manuals can be found on the product web page).



Q: What happens if I set off a false alert by mistake?

Don’t panic, as long as it was a genuine mistake and not deliberate you have nothing to worry about, however you must turn off your Beacon and contact the emergency services as quickly as possible to let them know your transmissions are a False Alert.

Deliberate misuse or not notifying the proper authority may incur a severe penalty.   When you call be prepared to provide the following information:

The beacon Unique Identifier Number (UIN) (15 Hex ID printed on the beacon),

  1. Date
  2. Time and duration of the false alert
  3. Location of the beacon at the time of the false alert
  4. Cause of the false alert

The primary contact point in the United States for the notification of False Alerts is the United States Air Force Rescue Coordination Center (USAFRCC) the telephone number is 1-800-851-3051. However if you have an EPIRB you can contact the United States Coast Guard (USCG) in the following areas: Atlantic Ocean / Gulf of Mexico USCG Atlantic Area Command Center Tel: (757)398-6390 Pacific Ocean Area / USCG Area Command Center Tel: (510) 437-3700 USCG HQ Command Center Tel: (800) 323-7233. If you have an ELT as well as contacting the USAFRCC you might also want to contact your local Flight Service Station (FSS) on 1-800-WXBRIEF  (1-800-992-7433).



Q: Whats the difference between the AquaLink models and the SARLink Models?

The quick answer is flotation.

The AquaLink and AquaLink View Personal Locator Beacons are buoyant so you can retrieve them should you ever accidentally drop them in the ocean, lake or in a river.

The SARLink and SARLink View Personal Locator Beacons have a slimmed down back case to make them slightly smaller but these models will not float.
