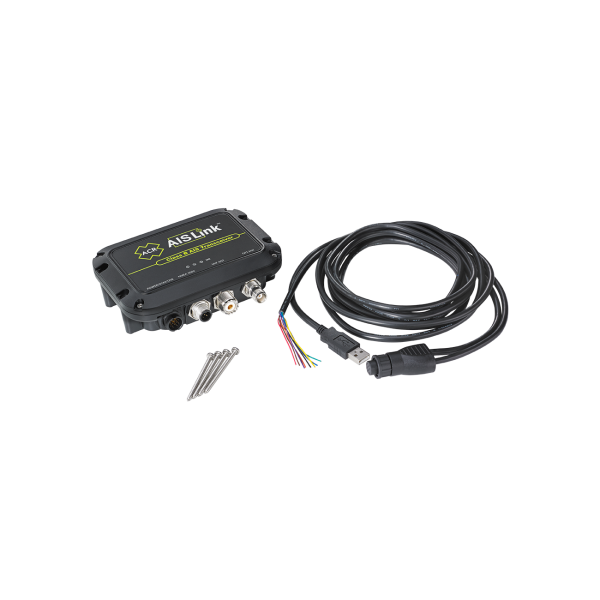

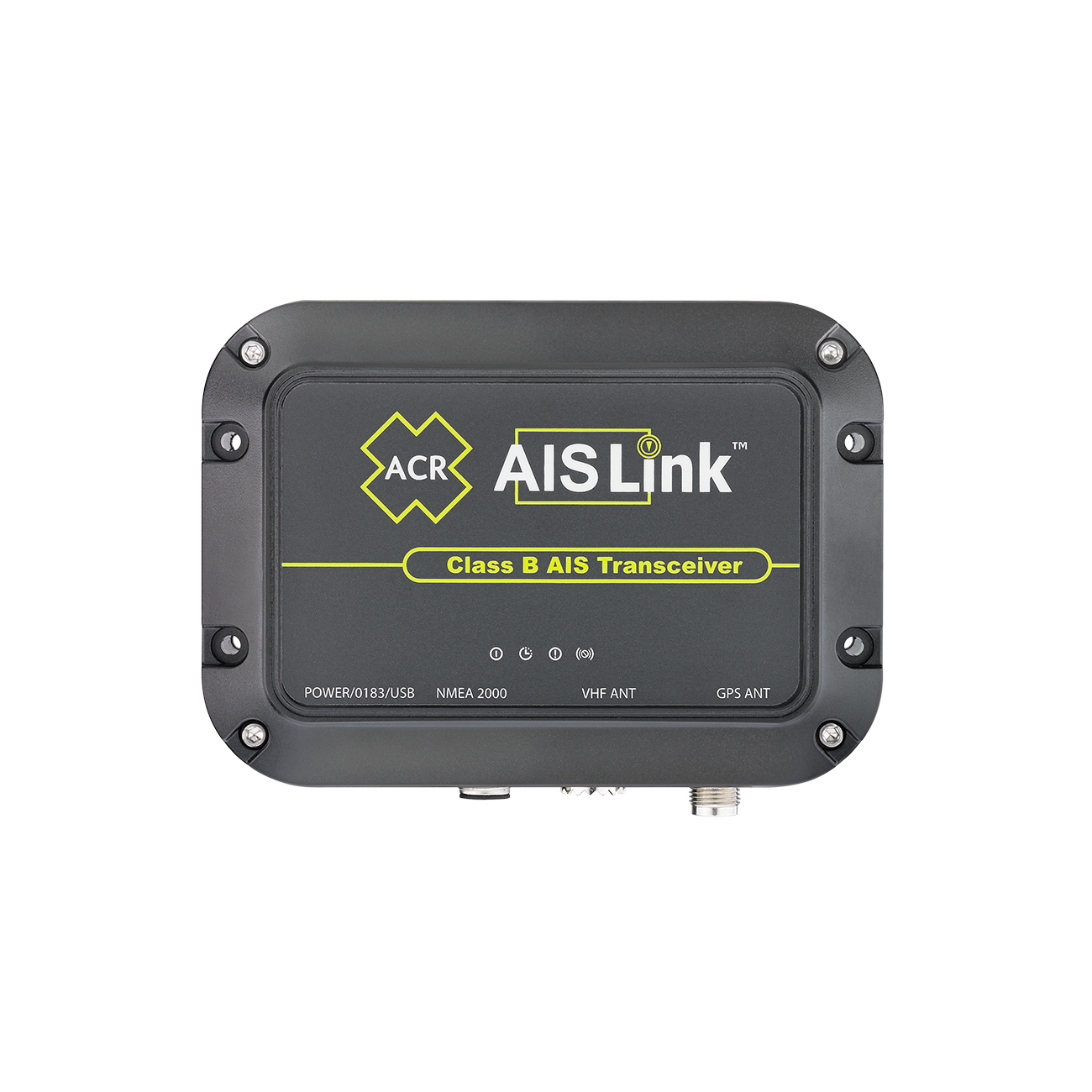

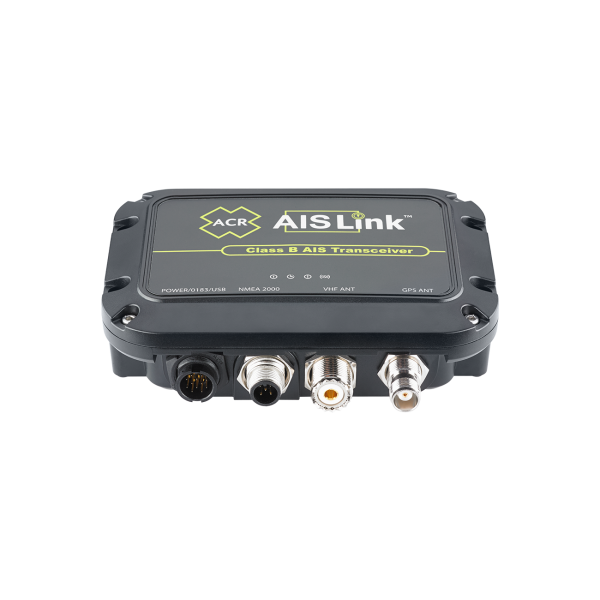

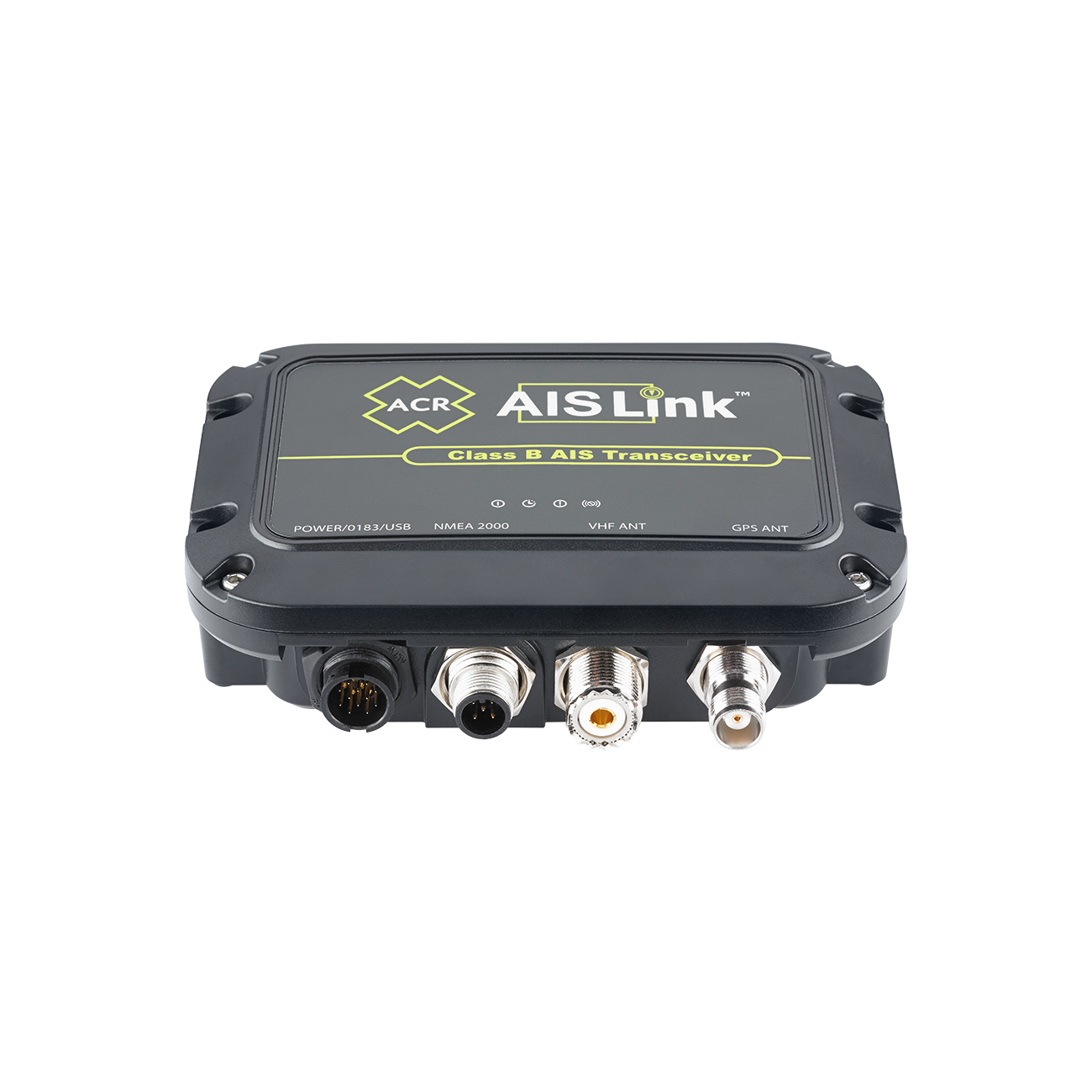

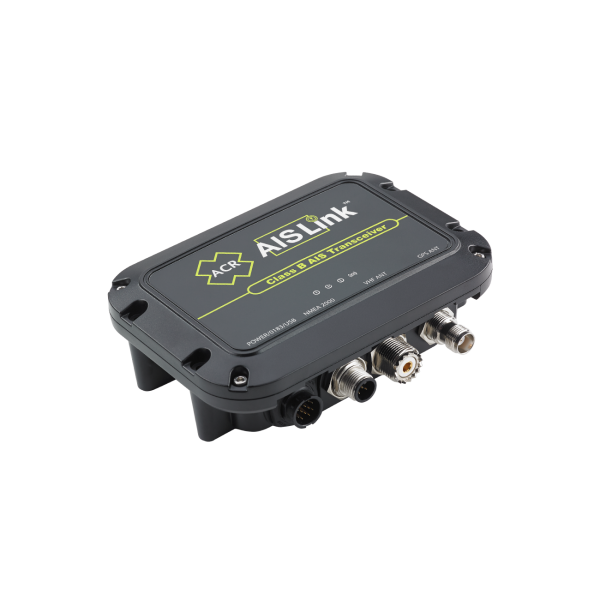

AISLink CB1

This product has been discontinued and is no longer available for sale.  The new AISLink CB2 Class B+ is now available, learn more.

Supporting Documents for the AISLink CB1 are available in the Downloads Tab.

This product has been discontinued.





Out of stock

PRODUCT DESCRIPTION

Features:

  • Internal GPS Antenna
  • Approved Worldwide
  • Low Power Consumption
  • Easy Installation
  • Silent Mode
  • Multiple Interfaces
  • Waterproof (IPx7)
  • Default Frequencies: AIS 1 – 161.975 MHz, AIS 2 – 162.025 MHz

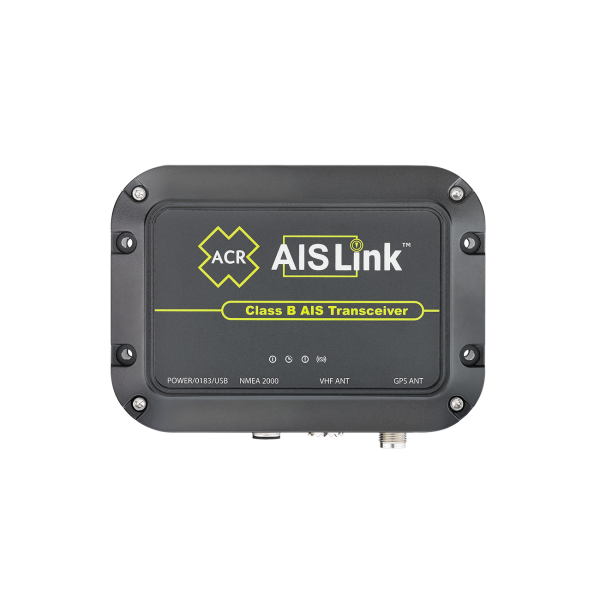

The ACR AISLink CB1 AIS is approved worldwide and is an extremely reliable transceiver which incorporates a number of convenient user features. With an internal GPS antenna, which makes an external antenna optional, users are able to save time on installation while also saving on space. Additional design features which offer further convenience include a small, rugged, and waterproof (IPx7 certified) design with low power consumption.

The AISLink CB1 also features NMEA0183 and NMEA2000 data output which allows for seamless interaction with navigation systems. The ability to place the transceiver in silent mode also provides both privacy and security as this enables users to turn off the transmission of identifying information while still seeing transmissions from other vessels with AIS.



Click here to watch the ACR AISLink CB1 Quick Installation Video

Additional information

Weight 0.00 lbs
Product

Product Number

2672

Size

5.5” x 3.9“ x 1.9” (140 mm x 100 mm x 50 mm)

Weight

9.87 oz (280 g)

Power Supply

12 to 24VDC

Power Consumption

150mA @ 12VDC, <2W average

Data Interface

NMEA 2000 USB IEC61162-1 (NMEA0183) output, 38400baud IEC61162-1 (NMEA0183) input, 4800baud Silent mode switch input

User Interface

LEDs for power, transmit timeout, error, and silent mode

Waterproof

IPx7 rated for water ingress

Operating Temp.

5˚F to 131˚F (-15˚C to 55˚C)

IEC 60945

‘Protected’ category

VHF Transmitter

x1

VHF Receiver

x2

VHF Frequency

156.025 to 162.025MHz in 25KHz steps

VHF Output Power

2W

VHF Receiver Sensitivity

<-110dBm @20% PER

GPS Receiver

50 Channels, IEC61108-1 Compliant, GLONASS option available

Approvals

FCC, USCG, EU R&TTE CE, Industry Canada

AIS Standards

IEC62287-1 Edition 2, ITU-R M.1371-4

Environmental Standard

IEC60945 Edition 4

Serial Data Interface Standards

IEC61162-1, IEC61162-2 Edition 2

GPS Performance Standard

IEC61108-1

NMEA2000 Interface Standard

NMEA2000 Edition 2.20

Product Safety

EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011

Note for U.S. Residents

An MMSI number is required for the AIS transceiver to operate. U.S. residents using an AIS Class B transceiver in U.S. waters should make sure that their retailer has configured the product prior to buying it.

WARRANTY LENGTH: 2 YEARS

This product is warranted against factory defect in material and workmanship for a period of twenty-four (24) months from date of purchase. During the warranty period ACR Electronics, Inc. (ACR) will repair or at its option, replace at no cost to the user for labor, materials or return transportation.

For further assistance, please contact our Technical Service Department at :



ACR Electronics, Inc.

5757 Ravenswood Road, Fort Lauderdale, FL 33312-6645

Email: service@acrelectronics.com

Telephone: +1 (954) 981-3333

Fax: +1 (954) 983-5087



This warranty does not apply if the product has been damaged by accident or misuse, or as a result of service or modification by other than the manufacturer. THE COMPANY MAKES NO REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY OTHER MATTER WITH RESPECT TO THIS PRODUCT, EXCEPT AS OTHERWISE EXPRESSLY STATED IN THE PREVIOUS PARAGRAPH. The Company shall not be liable for consequential or special damages. In order to place the warranty in effect, please fill out the warranty registration form located on the product page at www.acrartex.com or complete and mail the registration card accompanying the product (if applicable) which must be returned to ACR within ten (10) days of purchase.



What the Warranty covers
ACR warrants that, subject to correct storage, installation and use as instructed in the Installation Manual, the Product will be free from manufacturing and design defects for the Warranty Period. In the unlikely event of a problem with the Product please follow the warranty claim process. Once the product is returned, ACR will determine the validity of the warranty claim and the action(s) which needs to be taken. ACR’s decision on all warranty claims is final and is limited in all respects
to the repair or replacement of the product at ACR’s sole discretion.



What the Warranty does not cover
The Warranty does not cover the effects of normal wear and tear. The Warranty is immediately invalidated in the event that the Product has been opened and or tampered with in any way or not stored, installed or used as described in the Installation Manual, or have not followed subsequently issued directions from ACR. This Warranty does not cover the data that is received and outputted by the Product as it is subject to external factors out of ACR’s control. This Warranty doesnot cover the product when, following testing by ACR, it has been deemed to be damaged by any third party device.



How to make a Warranty claim
In the unlikely event of a problem a user should first consult the Installation Manual to ensure that all of the instructions have been followed correctly. If a Warranty claim is to be made, please contact ACR directly by email at service@ACRARTEX.com, or via the web site, www.ACRARTEX.com providing the date of purchase, vendor purchased from, exact product model number, the product serial number and a detailed description of the problem. In the event that the product is returned to ACR Electronics, Inc. a Return Material Authorization (RMA) number must be obtained as directed on the website www.acrartex.com and in compliance with the company’s RMA policy. In all cases ACR’s decision on the validity of any warranty claim and the remedy is final.



Limitation of liability
ACR’s entire liability and responsibility is limited by the Warranty described herein. The Warranty is non-transferable and therefore is only valid for the original purchaser of the new product from an authorized ACR vendor. Any additional warranty offered by vendors is entirely at their own risk unless specifically sanctioned by ACR in the form of a written commitment. ACR is not liable for any direct, indirect, consequential and or vicarious liabilities which may arise through the use of the Product, including but not limited to any consequences resulting from the inability to use the Product and or misinterpretation and or quality of the information generated by the Product. The entire extent of the liability from ACR to the user in respect to the Product in all situations and respects shall be limited to the net amount paid for the Product from the original vendor.

Is there a new version of the AISLink CB1 available for purchase?
Yes, while the AISLink CB1 has been discontinued, the new AISLink CB2 Automatic Identification System is now available.  Learn more about the CB2 here.
