8603 Rod Antenna, Tri-band

8603 Rod Antenna, Tri-band

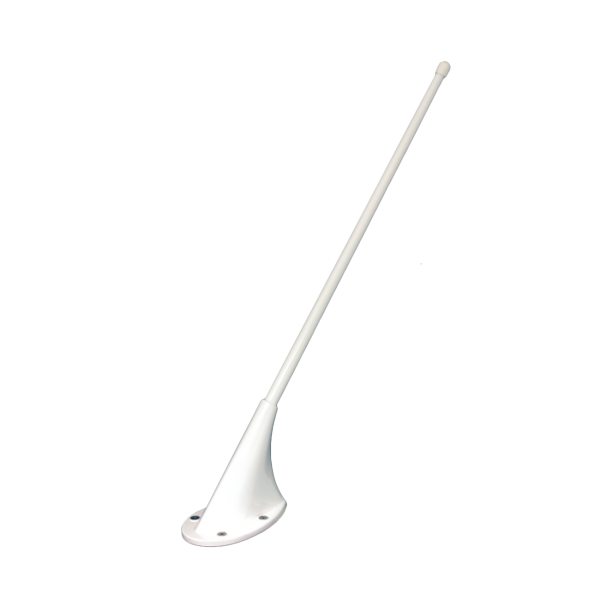

The ARTEX 8603 Rod Antenna is reinforced with glass and a polyester housing that covers our innovative Tri-Band technology, effectively bringing 121.5, 243, and 406 MHz frequencies in one compact package. This highly efficient antenna provides a single BNC connector for those installations that require a single connector set-up.

Find a dealer

PRODUCT DESCRIPTION

Our new rod antenna is reinforced with glass and the polyester housing covers our innovative Tri-Band technology, bringing 121.5, 243, and 406 MHz into a compact package. This highly efficient antenna provides a single BNC connector for those installations that require a single connector set-up. Designed to TSO C91a and C128b.

Additional information

Weight 0.00 lbs
Aircraft Speed

Aircraft Type

, ,

Product

,

Frequency 121.5, 243 & 406 MHz
VSWR 2.0:1 – 121.5/243 MHz, 1.5:1 – 406 MHz
Polarization Vertical
Radiation Pattern Omni-directional
Impedence RF 50 OHMS (nominal)
Weight 0.45 lbs.
Height 15.50”
Material Molded radome/fiberglass whip
Finish White Glass, Non-Yellowing Paint
Connector BNC (female) for 121.5, 243 & 406 MHz
Temperature -55˚ C to + 85˚ C
Altitude 50,000’
Color 8603 (white)
Gasket Cork Gasket Optional

WARRANTY LENGTH: 30 MONTHS FROM DATE OF INSTALLATION OF THE GOODS ON BUYERS SOLUTION, 24 MONTHS FROM THE DATE OF DISPATCH OF GOODS BY THE SUPPLIER

Warranty coverage is effectively extended from previous warranties offered on Artex products.  To qualify for warranty coverage, a customer must do one of two things.

1) Provide the original packing list from Artex and/or Ulfsberg Electronics with a shipping date on it.  The warranty period expires 24 months from the date shipped on the packing list.

2) Provide proof of installation date (Logbook entry, signed copy of the FAA form 337 the ELT was installed under, or other documentation stating such).

If the customer is unable to provide either methods of documentation, the warranty will apply for 24 months from date of manufacture listed on the ELT product label, with a 6 month installation grace period – effectively 30 months.

For any inquiries regarding warranties, feel free to contact Artex products technical support at: artexsupport@acrartex.com or by phone at USA 928-756-1615.
