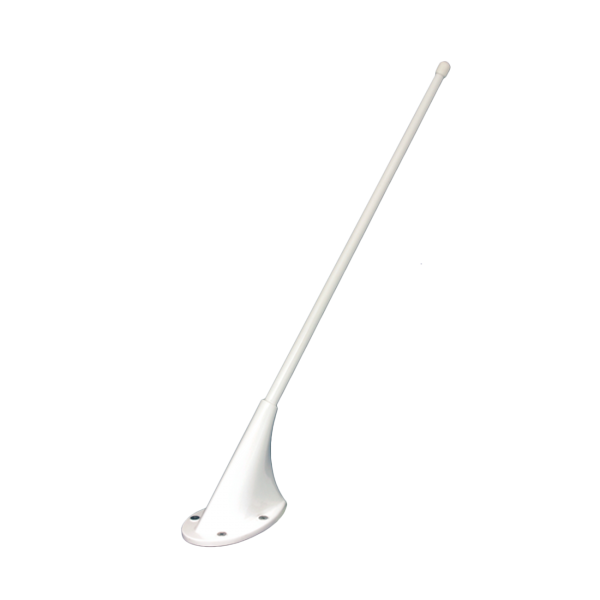

Tri-band, 121.5, 243 & 406 MHz
Tough, glass reinforced polyester housing covers our innovative Tri-Band technology, bringing 121.5, 243, and 406 MHz into a compact package. This highly efficient antenna provides a single BNC connector for those installations that require a single connector set-up. Designed to meet the Eurocae ED 62 flame test.
Two Models Available:
– 110-338 (white)
– 110-338-01 (black)
| Weight | 0.00 lbs |
|---|---|
| Aircraft Type | |
| Product |
| Frequency | 121.5, 243 & 406 MHz |
| VSWR | 2.0:1 – 121.5/243 MHz, 1.5:1 – 406 MHz |
| Polarization | Vertical |
| Radiation Pattern | Omni-directional |
| Impedence RF | 50 OHMS (nominal) |
| Weight | 0.45 lbs. |
| Height | 15.50” |
| Material | Molded radome/fiberglass whip |
| Finish | Polyurethane enamel |
| Connector | BNC (female) for 121.5, 243 & 406 MHz |
| Temperature | -55˚ C to + 85˚ C |
| Altitude | 50,000’ |
| Color | 110-338 (white), 110-338-01 (black) |
| Gasket | B31725 (Optional—order separately) |
Warranty coverage is effectively extended from previous warranties offered on Artex products. To qualify for warranty coverage, a customer must do one of two things.
1) Provide the original packing list from Artex and/or Ulfsberg Electronics with a shipping date on it. The warranty period expires 24 months from the date shipped on the packing list.
2) Provide proof of installation date (Logbook entry, signed copy of the FAA form 337 the ELT was installed under, or other documentation stating such).
If the customer is unable to provide either methods of documentation, the warranty will apply for 24 months from date of manufacture listed on the ELT product label, with a 6 month installation grace period – effectively 30 months.
For any inquiries regarding warranties, feel free to contact Artex products technical support at: artexsupport@acrartex.com or by phone at USA 928-756-1615.
