110-337 Blade Antenna

Tri-band, Dual Input, 121.5, 243 & 406 MHz

Find a dealer

SKU: 110-337, 110-337-01 Category: Tags: , , , , , , ,

PRODUCT DESCRIPTION

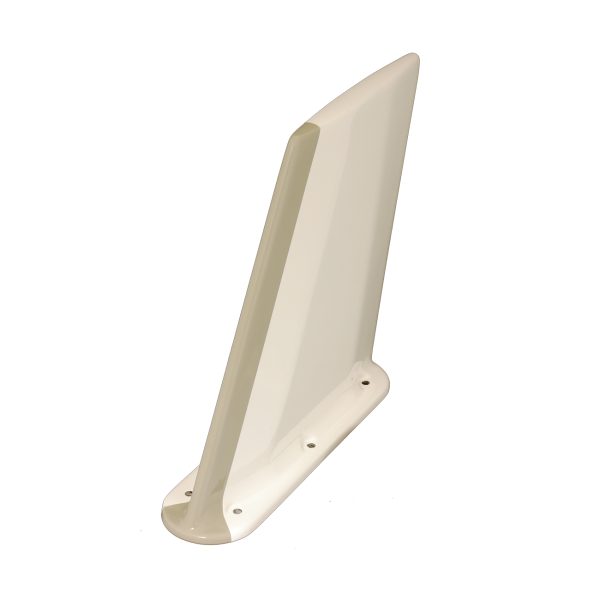

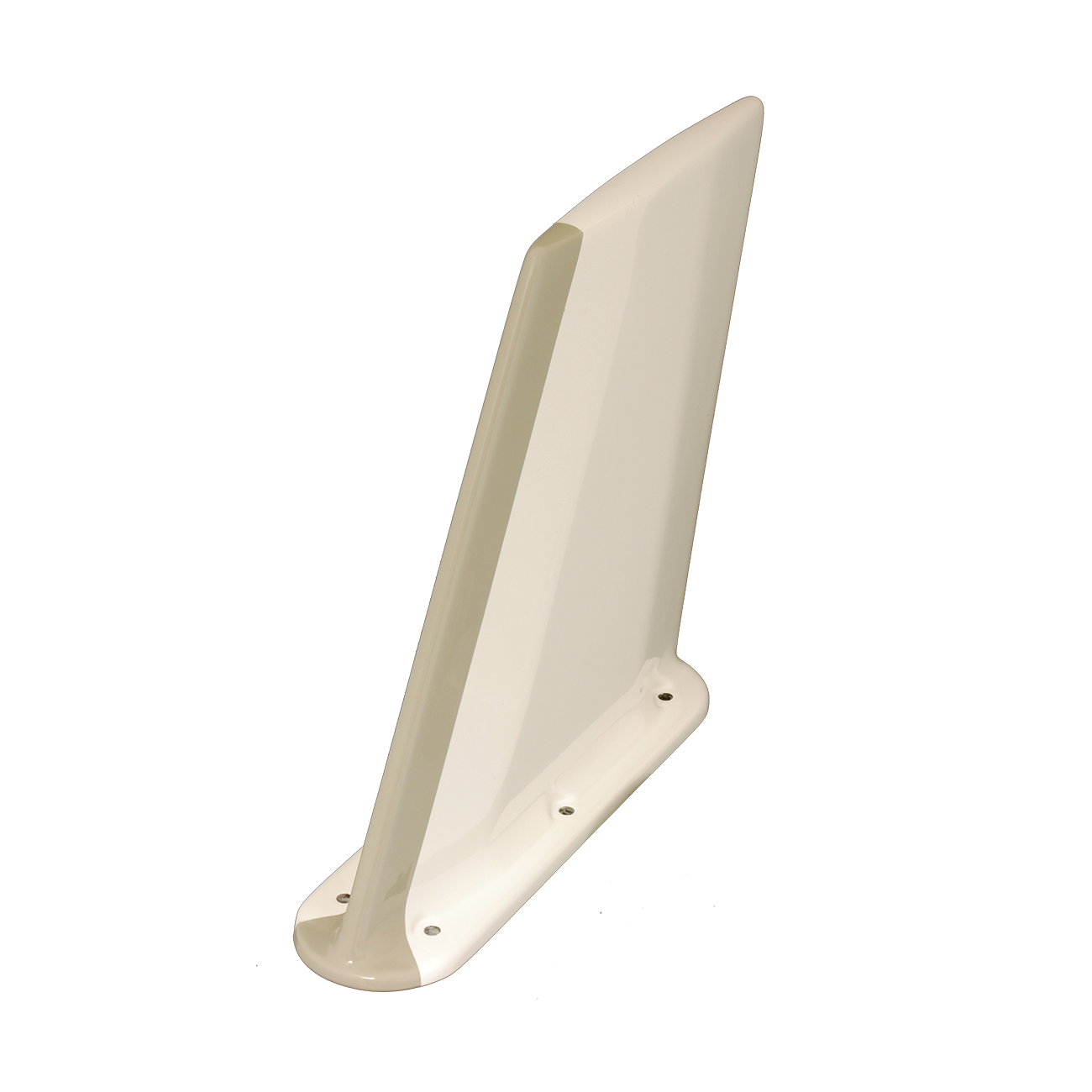

Tri-Band Blade high speed antenna provides our innovative Tri-Band technology, bringing the 121.5, 243, and 406 MHz frequencies into a compact package. The 110-337 offers two connectors for those installations that require this set-up. Designed to meet TSOA C91a requirements, plus the Eurocae ED 62 flame test.

Two Models Available:
– 110-337
– 110-337-01 (protective edge)

Additional information

Weight 0.00 lbs
Aircraft Type

, , ,

Product

,

Frequency 121.5, 243 MHz & 406 MHz
VSWR 2.0:1 – 121.5/243 MHz, 1.5:1 – 406 MHz
Polarization Vertical
Radiation Pattern Omni-directional
Impedence RF 50 OHMS (nominal)
Power RF 50 Watts
Weight 1.3 lbs. maximum
Height 7.75”
Material Molded blade
Finish Polyurethane enamel
Connector BNC (female) for 121.5/243 MHz, TNC (female) for 406 MHz
Temperature -55˚ C to + 85˚ C
Altitude 50,000’
Color White
Gasket B31914 (sold separately)

WARRANTY LENGTH: 30 MONTHS FROM DATE OF INSTALLATION OF THE GOODS ON BUYERS SOLUTION, 24 MONTHS FROM THE DATE OF DISPATCH OF GOODS BY THE SUPPLIER

Warranty coverage is effectively extended from previous warranties offered on Artex products. To qualify for warranty coverage, a customer must do one of two things.

1) Provide the original packing list from Artex with a shipping date on it. The warranty period expires 24 months from the date shipped on the packing list.

2) Provide proof of installation date (Logbook entry, signed copy of the FAA form 337 the ELT was installed under, or other documentation stating such).

If the customer is unable to provide either methods of documentation, the warranty will apply for 24 months from date of manufacture listed on the ELT product label, with a 6 month installation grace period – effectively 30 months.

For any inquiries regarding warranties, feel free to contact Artex products technical support at: artexsupport@acrartex.com or by phone at USA 954-981-3333.
