Additional information
| Weight | 0.00 lbs |
|---|

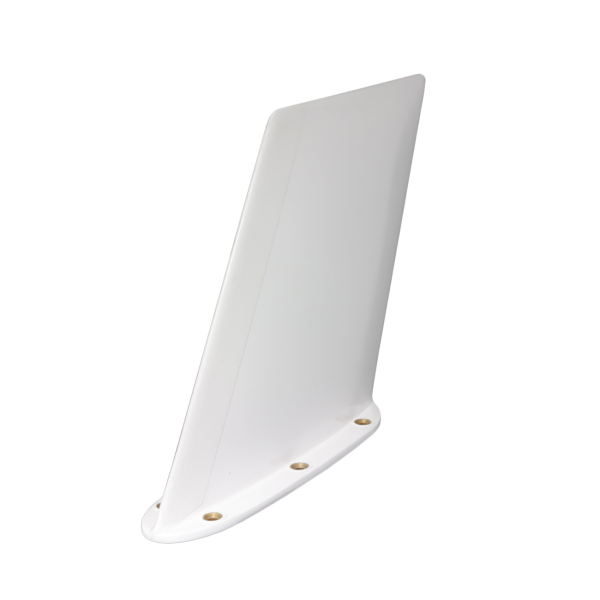

110-328-01 Blade Antenna
Tri-band, Dual Input, 121.5, 243 & 406 MHz
Frequency
121.5, 243 & 406 MHz
VSWR
2.0:1 – 121.5/243 MHz, 1.5:1 – 406 MHz
Polarization
Vertical
Radiation Pattern
Omni-directional
Impedence RF
50 OHMS (nominal)
Weight
1.2 lbs.
Height
9.0”
Finish
White polyurethane paint
Connector
BNC (female) for 121.5/243 MHz, TNC (female) for 406 MHz
Temperature
-55˚ C to + 85˚ C
Altitude
50,000’
Color
White
WARRANTY LENGTH: 30 MONTHS FROM DATE OF INSTALLATION OF THE GOODS ON BUYERS SOLUTION, 24 MONTHS FROM THE DATE OF DISPATCH OF GOODS BY THE SUPPLIER
Warranty coverage is effectively extended from previous warranties offered on Artex products. To qualify for warranty coverage, a customer must do one of two things.
1) Provide the original packing list from Artex with a shipping date on it. The warranty period expires 24 months from the date shipped on the packing list.
2) Provide proof of installation date (Logbook entry, signed copy of the FAA form 337 the ELT was installed under, or other documentation stating such).
If the customer is unable to provide either methods of documentation, the warranty will apply for 24 months from date of manufacture listed on the ELT product label, with a 6 month installation grace period – effectively 30 months.
For any inquiries regarding warranties, feel free to contact Artex products technical support at: artexsupport@acrartex.com or by phone at USA 954-981-3333.
